The fastest Gigabit Ethernet cameras in the world - 240MB/s

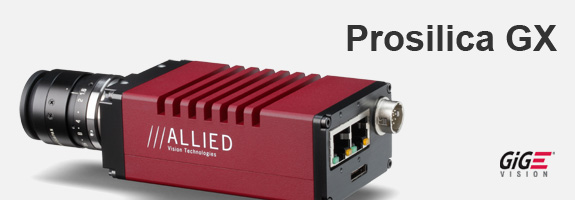

The Prosilica GX cameras are fast, compact machine vision cameras with Gigabit Ethernet interface (GigE Vision®). The GX-Series have two screw-captivated Gigabit Ethernet ports configured as a Link Aggregation Group (LAG) to provide a sustained maximum data rate of 240 MBytes per second. The Prosilica GX can also work at half the bandwidth (120 MB/s) using a single cable.
- Very Fast - 240 MB/s
- 3-axis motorized lens control and video-type autoiris
- Single or dual Ethernet port operation
- 1 to 29 Megapixel
- Fast frame rates to 112 fps
- Kodak KAI and Sony quad-tap CCD sensors
- Modular options available
| Prosilica GX |
1050 |
1660 |
1910 |
1920 |
| Interface |
IEEE 802.3 1000baseT |
| Resolution |
1024 x 1024 |
1600 x 1200 |
1920 x 1080 |
1936 x 1456 |
| Sensor |
Kodak KAI-01050 |
Kodak KAI-02050 |
Kodak KAI-02150 |
Sony ICX674 |
| Sensor type |
CCD Progressive |
| Sensor size |
Type 1/2 |
Type 2/3 |
Type 2/3 |
Type 2/3 |
| Cell size |
5.5 µm |
5.5 µm |
5.5 µm |
4.54 µm |
| Lens mount |
C |
| Max frame rate at full resolution |
112 fps |
66 fps |
63 fps |
40 fps |
| A/D |
14 bit |
| On-board FIFO |
128 MB |
|
Output |
| Bit depth |
8/14 (mono) - 8/12 (color) bit |
| Mono modes |
Mono8, Mono12Packed, Mono16 |
| Color modes YUV |
YUV411, YUV422, YUV444 |
| Color modes RGB |
RGB24, BGR24, RGBA24, BGRA24 |
| Raw modes |
Bayer8, Bayer12Packed, Bayer16 |
|
General purpose inputs/outputs (GPIOs) |
| Opto-coupled I/Os |
2 inputs, 4 outputs |
| RS-232 |
1 |
|
Operating conditions/Dimensions |
| Power requirements (DC) |
5V - 24V |
| Power consumption (12 V) |
5.4W (1 port) - 6.7W (2 ports) |
5.6W (1 port) - 6.7W (2 ports) |
5.6W (1 port) - 6.7W (2 ports) |
5.3W (1 port) - 6.2W (2 ports) |
| Mass |
269 g |
Body Dimensions
(L x W x H in mm) |
107.2 x 53.3 x 33 (including connectors, w/o tripod and lens) |
107.2 x 53.3 x 33 (including connectors, w/o tripod and lens) |
107.2 x 53.3 x 33 (including connectors, w/o tripod and lens) |
108.1 x 53.3 x 33 (including connectors, w/o tripod and lens) |
| Regulations |
CE, FCC, Class A, RoHS |
| Prosilica GX |
2300 |
2750 |
3300 |
6600 |
| Interface |
IEEE 802.3 1000baseT |
IEEE 802.3 1000baseT |
IEEE 802.3 1000baseT |
Double Speed IEEE 802.3 1000baseT |
| Resolution |
2336 x 1752 |
2750 x 2200 |
3296 x 2472 |
6576 x 4384 |
| Sensor |
Kodak KAI-04050 |
Sony ICX694 |
Kodak KAI-08050 |
Kodak KAI-29050 |
| Sensor type |
CCD Progressive |
| Sensor size |
Type 1 |
Type 1 |
Type 4/3 |
Type 35 mm |
| Cell size |
5.5 µm |
4.54 µm |
5.5 µm |
5.5 µm |
| Lens mount |
C/F |
C |
F |
F |
| Max frame rate at full resolution |
32 fps |
19 fps |
17 fps |
4 fps |
| A/D |
14 bit |
| On-board FIFO |
128 MB |
|
Output |
| Bit depth |
8/14 (mono) - 8/12 (color) bit |
| Mono modes |
Mono8, Mono12Packed, Mono16 |
| Color modes YUV |
YUV411, YUV422, YUV444 |
| Color modes RGB |
RGB24, BGR24, RGBA24, BGRA24 |
| Raw modes |
Bayer8, Bayer12Packed, Bayer16 |
|
General purpose inputs/outputs (GPIOs) |
| Opto-coupled I/Os |
2 inputs, 4 outputs |
| RS-232 |
1 |
|
Operating conditions/Dimensions |
| Power requirements (DC) |
5V - 24V |
| Power consumption (12 V) |
5.8W (1 port) - 6.9W (2 ports) |
6.1W (1 port) – 7.1W (2 ports) |
6.1 W (1 port) - 7.2 W (2 ports) |
6.7W (1 port) – 7.6W (2 ports) |
| Mass |
269 g |
264 g |
365 g |
510 g |
Body Dimensions
(L x W x H in mm) |
107.2 x 53.3 x 33 (including connectors, w/o tripod and lens) |
108.1 x 53.3 x 33 (including connectors, w/o tripod and lens) |
136.3 x 53.3 x 33 (including connectors, w/o tripod and lens) |
136.6.x 53.3 x 53.3 (including connectors and lens mount, w/o tripod and lens) |
| Regulations |
CE, FCC, Class A, RoHS |
|
